Upload STEP geometry, review a detailed manufacturing estimate, catch DFM issues, and turn the result into a customer-ready quote — without installing the Desktop application.
- Runs in
- Supported browser
- Installation
- None
- Free
- 5 successful analyses

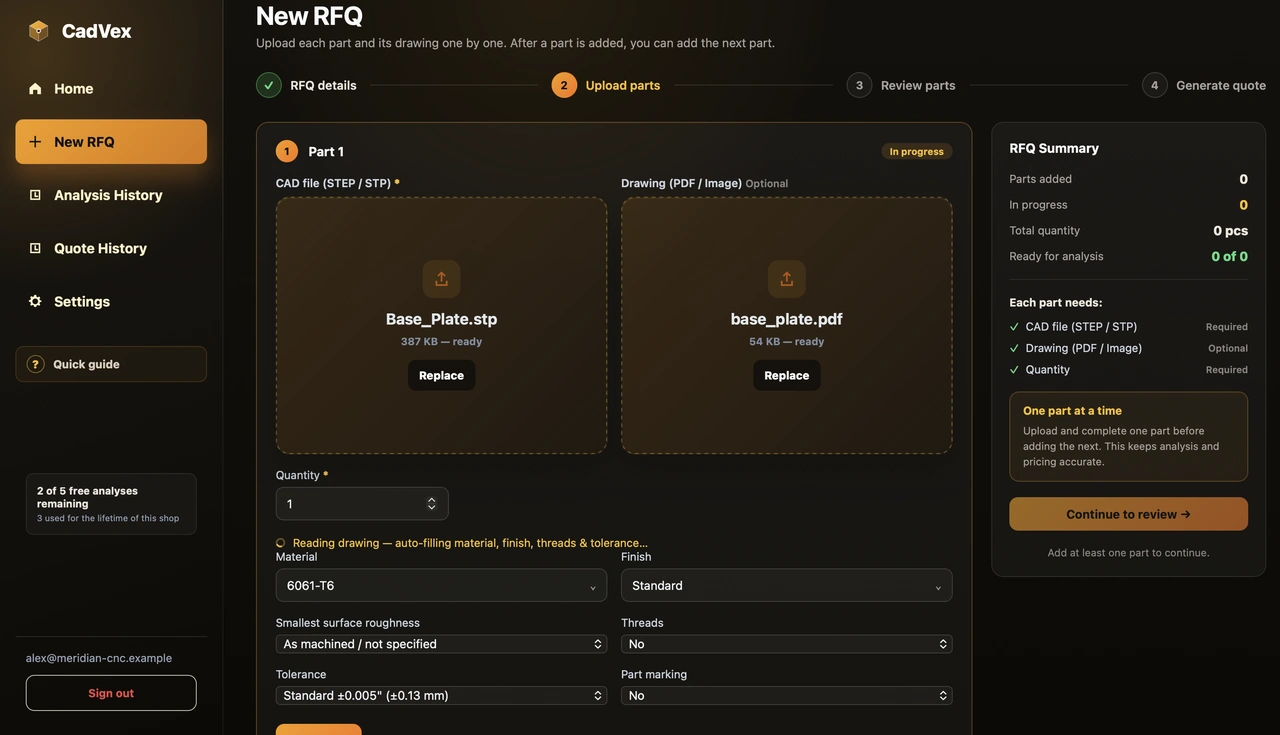

Bring the STEP file and drawing together.
Upload the STEP file for geometry analysis and add the engineering drawing where available. CadVex automatically extracts the drawing parameters, such as material, tolerances, threads and finishes, and fills them in for you to review. Each value shows where it came from and can be changed before quoting. The reading runs on CadVex’s servers through an AI service (Anthropic); CadVex Desktop reads the same drawing on your computer, with nothing uploaded.
- STEP geometry drives the machining analysis. The 3D model remains the source for features, operations, and stock.
- Drawings supply what the model can’t. Supported drawings can supply written requirements that are not contained in the 3D model.
- Nothing is applied blind. Extracted values remain reviewable and editable before quoting.
Extracted where present on the drawing:
- Material
- Tolerances
- Threads
- Heat treatments
- Coatings and finishes
- Part identifiers and marking
- Other manufacturing notes
Everything else is the same product.
Same interface and same estimates as CadVex Desktop. One list instead of repeating every screen — see the homepage for the full walkthrough.
| Capability | Includes |
|---|---|
| Detailed cost analysis | Part summary · Material & stock · Raw pricing · Material removal · Machining plan · Shop rate card · Setup & quantity. Every value shows its source and can be edited. |
| Material & machining detail | Stock utilization, removed volume, buy-to-fly ratio, machining route, time by operation, setup, inspection and detail work. |
| Built-in DFM | Issue-linked geometry, manufacturing impact and suggested changes, highlighted on the 3D model before quoting. |
| Quote generation | Multiple parts and quantities, editable line items, customer-ready PDF on your own letterhead and quote template, optional DFM report attachment where supported. |
| Quote intelligence | Draft, sent, won and lost status, quote history, open pipeline, win rate and customer performance. |
Your quoting workflow stays available wherever the shop signs in.
Use CadVex from a supported browser with no local installation. RFQ history, analysis history, quote history, shop settings, and the supported team workflow stay available through the online shop account.
- Team
- Admin + up to 3 members
- Seats
- No extra cost
Team invitations are available after the free evaluation.
Start your next RFQ in CadVex Cloud.
Five successful analyses are included before you need to set up billing.
